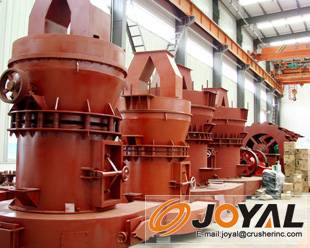

MTM Medium Speed Trapezium Mill

MTM Medium Speed Trapezium Mill is a leading-world-level industrial mill. It is designed by our own engineers and technical workers, basing on industrial mill research of many years and adopting world-leading-powder processing technology.



Main Specifications Of MTM Medium Speed Trapezium Mill:

Item	MTM100	MTM130	MTM160
Number of roller	4	5	6
Major diameter of roller ×Height(mm)	Φ310×170	Φ410×210	Φ440×270
Internal diameter of roller × Height(mm)	Φ950×170	Φ1280×210	Φ1600×270
Main engine spindle speed(mm)	130	103	82
Maximum feeding grain size (mm)	25	30	35
Grain size of finished product (mm)	1.6~0.045/0.038	1.6~0.045/0.038	1.6~0.045/0.038
Output (t/h)	2.1 - 8	4 - 13	7 - 22
Overall dimension (mm)	7100×5900×7900	9200×7250×9700	12550×5700×8355
Weight(t)	16	26.1	35

Name	Item	Unit	Specification and technical data
			MTM100		MTM130	MTM160
Motor of main engine	Model	-	Y225S-4		Y280S-4	Y315M-4
	Power	kw	37		75	132
	Spindle speed	r/min	1470		1480	1480
Motor of adjustable varying speed motor	Model	-	YCT200-4A		YCT200-4B	YCT225-4A
	Power	kw	5.5		7.5	11
	Spindle speed	r/min	125~1250		125~1250	125~1250
Motor of elevator	Model	-	Y100L-4		Y100L2-4	Y112M-4
	Power	kw	3		3	4
	Spindle speed	r/min	1420		1430	1420
Motor of centrifugal induced draught fan	Model	-	Y220L-4		Y250M-4	Y315M-4
	Power	kw	37		75	132
	Spindle speed	r/min	1470		1480	1480
Motor of jaw crusher	Model	PE	200x350		250x400	257x750
	Model	-	Y160M-6		Y180L-6	Y200M-6
	Power	kw	7.5		15	22
	Spindle speed	r/min	970		970	970
Electro magnetism Vibrating Feeder	Model	Kw	GZ2F		GZ2F	GZ3F
	Power		0.1		0.15	0.2
