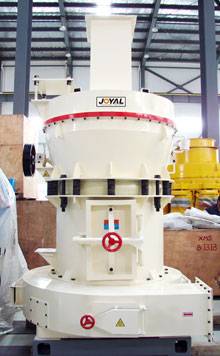

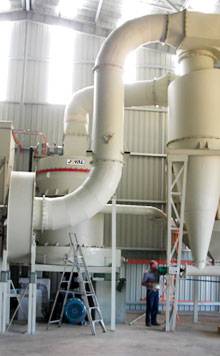

High-pressure Suspension Mill
The purpose of the JOYAL High Pressure Mill is to grind materials in the fields of building materials, mining, metallurgies and chemical industry. The materials should be non-flammable and non-explosive. Examples of the materials are: quartz, feldspar, barite, fluorite, dolomite, garnet, carborundum, bauxite, zircon, marble, calcite, iron ore, rock phosphate, coal, ceram, slag and so on(400 kinds of materials). The materials should have the hardness less than 9.3 in Moh’s scale and humidity less than 6 percent. The granularity of the end products can be changed from 30 to 425 meshes.
Working Principle Of High-pressure Suspension Mill:
The High-pressure Suspension Mill has the same working principle as Raymond Mill, but its grinding fitting is furnished with 1000 - 1500 kg pressure spring. When the machine works, the grinding roll, under the action of high pressure spring and centrifugal force, rolls close up to grinding ring, its rolling pressure ratio is 1.2 times of that of Raymond mill given an identical condition, but its output may increase 20% to 30%；When the grinding roller and grinding ring reach a certain degree of abrasion, please adjust the length of high-pressure spring to keep the constant grinding pressure between grinding roller and grinding ring, so as to ensure a stable output and fineness.
Main Specifications Of High-pressure Suspension Mill:
| Model | Grinding Roller | Grinding Ring | Feeding Size (mm) |
Output Size (mm) |
Capacity (t/h) |
Motor Power (kw) |
Overall Dimension (mm) |
|||
Numbers (pcs) |
Diameter (mm) |
Height (mm) |
Outside Diameter (mm) |
Height (mm) |
||||||
| YGM75 | 3 | 260 | 150 | 865 | 150 | ＜15 | 0.613-0.033 | 0.4-3.1 | 35.7 | 5000× 4100× 4850 |
| YGM85 | 3 | 270 | 140 | 907 | 140 | ＜20 | 0.613-0.033 | 0.5-4.0 | 42.7 | 5150× 5000× 5200 |
| YGM95 | 4 | 310 | 170 | 1050 | 170 | ＜25 | 0.613-0.033 | 1.1-5.6 | 72.5 | 7550× 7400× 8100 |
| YGM130 | 5 | 410 | 210 | 1400 | 210 | ＜30 | 0.613-0.033 | 2.2-9.5 | 172.5 | 8510× 8000× 9645 |
| YGM160 | 6 | 440 | 270 | 1740 | 270 | ＜35 | 0.613-0.033 | 8-22 | 275 | 12550× 5700× 8355 |
Attachments:
JOYAL High-pressure Suspension Mill -- Brochure -- English (1660 KB)
