What crusher is good for iron ore?

(Rating: 5.00 / 5 - total 1 votes)
Loading...
Date: 2020-06-24


The iron ore crusher is a device that crushes large pieces of raw iron ore into fine materials. The iron ore crushing process includes several major processes such as feeding, primary crushing, secondary crushing, screening, and dry separation. So, what crusher is good for iron ore?

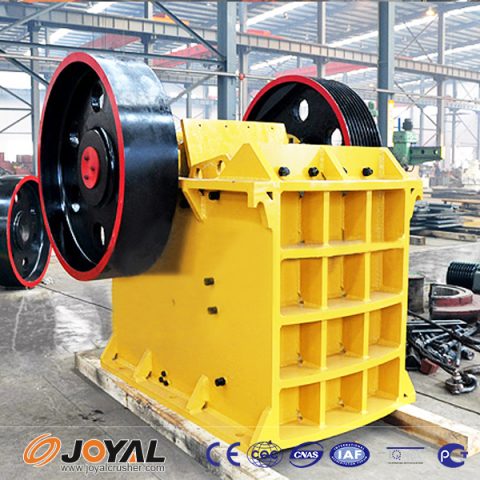

The jaw crusher is generally used for primary crushing in iron ore production. The jaw crusher produced by Shanghai Joyal Mining Machine is mainly composed of motor, belt, pulley, movable jaw, fixed jaw plate, eccentric shaft, toggle plate, toggle plate It is composed of pads and the like. Its working principle is that the motor drives the belt and the pulley. The eccentric shaft makes the movable jaw move in a plane. When the movable jaw rises, the angle between the elbow plates becomes larger, thereby pushing the jaw plate closer to the fixed jaw plate. At the same time, the material is squeezed; when the moving jaw descends, the angle between the toggle plates becomes smaller, and the moving jaw plate leaves the fixed jaw plate under the action of the tie rod spring. At this time, the crushed material is discharged from the crushing chamber. Crusher is reliable and stable coarse crushing equipment.
