How to install and debug the mobile cone crusher

(Rating: 5.00 / 5 - total 1 votes)
Loading...
Date: 2021-08-14


The working principle of the cone crusher is that the motor drives the eccentric sleeve to rotate through the transmission device. The moving cone rotates and swings under the forced movement of the eccentric shaft sleeve. The section of the moving cone close to the static cone becomes the crushing cavity. The cone is broken by multiple squeezing and impacts.


   Its machine performance advantages are:

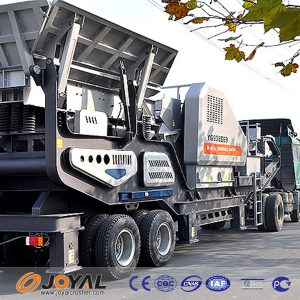

  1. Flexible maneuverability, more convenient to drive in the rugged and harsh road environment of the crushing site: it saves time for quick entry to the construction site. It is more conducive to stationing in a reasonable construction area, eliminating the fixed and cumbersome steel frame structure, and the construction of the foundation, saving a lot of time.

  2. Reduce the cost of materials: you can directly select the site, open to the site, without transportation, and directly reach the finished product size; in addition, the extended unit can directly send the broken materials to the specific transfer belt conveyor, saving transportation costs. According to the customer’s requirements for material types and products in the process, we can provide more flexible process plan configuration to meet the user’s mobile crushing, mobile screening and other requirements, so that the generation organization and logistics transfer are more direct and effective, and the cost is maximized. .

  These good properties make it more and more suitable for different construction applications. So how to install and debug the cone crusher?

   When installing the cone crusher, first install the frame on a level foundation, and calibrate the level, then install the drive shaft. Install the eccentric bushing into the frame sleeve from the upper part of the frame, and calibrate the clearance of the bevel gear. Then install the spherical bearing support, lubrication system and water seal system, insert the assembled main shaft and movable cone, then install the support ring, adjusting ring and spring, and finally install the feeding device.
