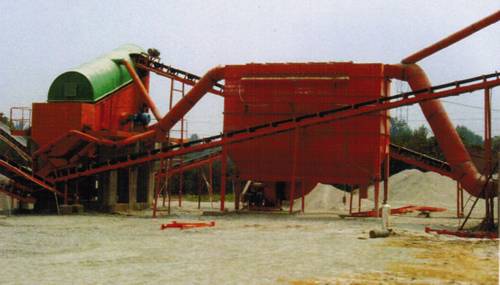

DMC Series Bag Dust Filter

The JOYAL Dust Filter is a small kind of Pouch Dust Catcher which is improved on the basis of domestic and foreign advanced technology and further design optimization. With pulse-jet dust cleaning method, it has the advantages of high efficiency dust cleaning, long life filter bags, easy maintenance and reliable performance. For some machines that produce too much dust in working, this dust filter is a good accessory machine.



Features Of The DMC Series Bag Dust Filter:

1. Advanced pulse-jet dust cleaning technology, can clean the dust absolutely, and get low resistance when running.
2. Qualified spare parts to ensure high-efficiency dust cleaning.
3. Automatic control system, easy in maintenance, and high efficiency in running.

Main Specifications Of DMC Series Bag Dust Filter:

Model	Air Flow (m3/h)	Filter Area (m3)	Filter Air Speed (m/min)	Qty of Filter Bags (Pcs)	Air consumption (m3/min)	Motor Power of Blower (kw)	Qty of Pulse Valve (pcs)
DMC-32	1500-2100	24	1-1.5	32	0.10	1.5	4
DMC-48	2100-3200	36	1-1.5	48	0.14	3.0	6
DMC-64	2900-4300	48	1-1.5	64	0.20	3.0	8
DMC-80	4000-6000	60	1-1.7	80	0.24	5.5	10
DMC-96	5200-7000	72	1.2-1.7	96	0.29	5.5	12
DMC-112	6000-9000	84	1.2-1.8	112	0.34	7.5	14
DMC-120	10800-21600	96	1.5-4	120	0.45	7.5	20

Model	Equipment Resistance (Pa)	Inlet Dust Concentration (mg/m3)	Outlet Dust Concentration (mg/m3)	Blasting Pressure (MPa)	Affording Pressure (Pa)
DMC-32	≤1200	<200	<50	0.4-0.6	5000
DMC-48
DMC-64
DMC-80
DMC-96
DMC-112
DMC-120
