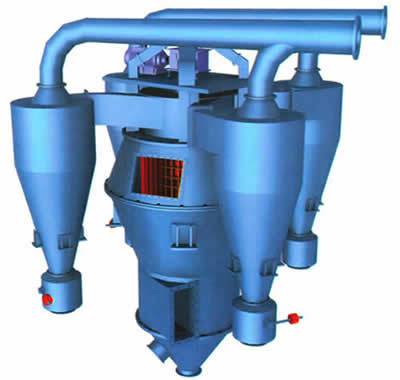

KX Series Rotary Separator
The JOYAL KX series powder Separator is improved on the basis of whirlwind powder Separator, to use whirlpool theory on the rotary powder Separator. It is an outside circular rotary powder Separator. The powder separating ratio can be up to 85% after testing. It has the advantages of easy adjustment for different size powder, reliable structure.
Main Specifications Of KX Series High Fine Rotary Powder Separator:
| Model | Grinding Mill Diameter (m) | Speed of Main Shaft (rpm) | Capacity (t/h) | Residual Rate after Sieved by 80μm Square Hole Screen |
| KX500 | ø1.83 | 190-380 | 21-28 | 8%-10% |
| KX600 | ø2.2 | 150-350 | 30-35 | |
| KX700 | ø2.4 | 130-320 | 35-46 | |
| KX800 | ø2.6 | 120-280 | 55-65 | |
| KX900 | ø3.0 | 120-280 | 70-86 | |
| KX1000 | ø3.5 | 120-280 | 90-115 | |
| KX1200 | ø3.8 | 120-260 | 120-160 |
| Model | Motor for Main Shaft | Blower | ||||||
| Model | Power (kw) | Speed Range (rpm) | Model | Speed (rpm) | Air Pressure (Pa) | Air Content (m3/h) | Motor Power (kw) | |
| KX500 | YCTL-225-4A | 11 | 125-1250 | KXJF-No8C | 1680 | 2494 | 29668 | 30 |
| KX600 | YCTL-225-4B | 15 | KXJF-No10C | 1200 | 2400 | 34996 | 37 | |
| KX700 | YCTL-225-4C | 18.5 | 132-1320 | KXJF-No12.5C | 1000 | 2390 | 64188 | 55 |
| KX800 | YCTL-280-4B | 30 | KXJF-No14C | 980 | 2546 | 86331 | 90 | |
| KX900 | YCTL-355-4A | 55 | KXJF-No16B | 800 | 2466 | 99493 | 110 | |
| KX1000 | YCTL-355-4B | 75 | KXJF-No16B | 900 | 2684 | 136430 | 132 | |
| KX1200 | Y380M-4 | 90 | 120-1480 | KXJF-No20B | 680 | 2771 | 165164 | 160 |
